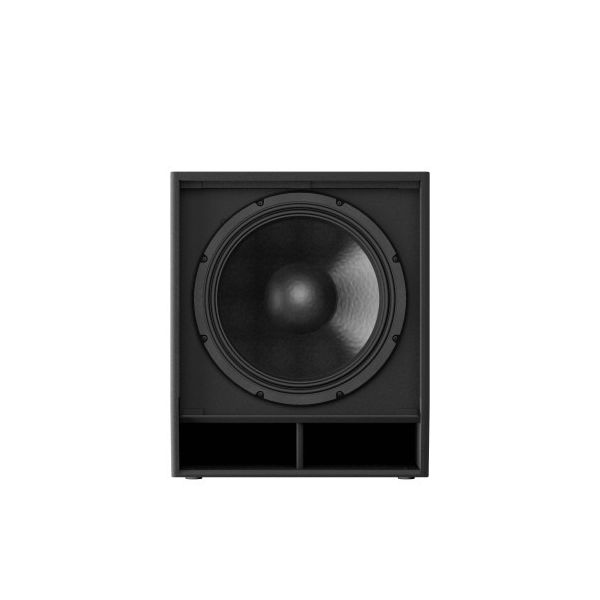

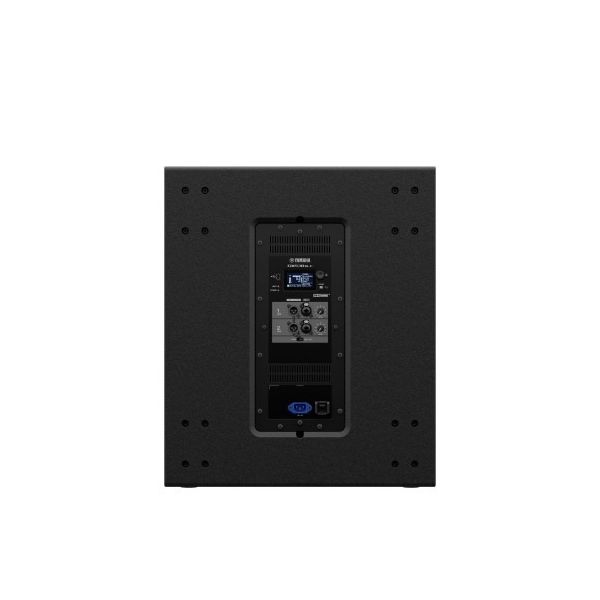

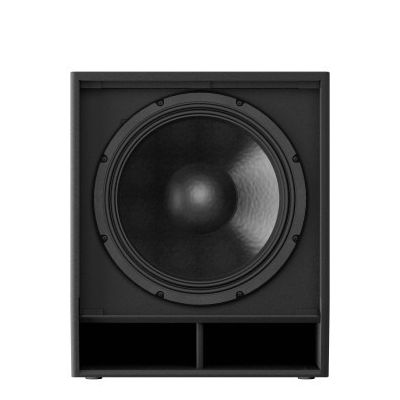

Yamaha DXS18XLF 18" Powered Subwoofer 1600 Watts

Skip to the beginning of the images gallery

Details

More Information

Reviews

Questions

Yamaha

Yamaha 18" Powered Subwoofer 1600 Watts

Item #: YADXS18XLF | UPC: --

The Yamaha DXS18XLF is an extended low-frequency powered subwoofer designed for maximum depth and power in live sound reinforcement. Equipped with a 1600W Class-D amplifier and a custom 18" woofer with 4" voice coil, it delivers a thunderous response from 30Hz–150Hz and an impressive 136dB max SPL. Advanced 96kHz DSP ensures clarity and control, while Yamaha’s D-XSUB processing provides selectable Normal, Boost, and Xtended LF modes for flexible tuning. The DXS18XLF also supports cardioid mode when used with multiple units to keep bass tight on stage and focused for the audience. Built with a rugged plywood cabinet coated in durable polyurea, this subwoofer is engineered to withstand touring demands while maintaining pristine performance.

The DXS XLF Series pushes Yamaha’s subwoofer technology further with ultra-low frequency extension, high-output Class-D power, and versatile DSP options for professional live sound.

Key Features

18" woofer with 4" voice coil for extended low-end response
1600W Class-D amplifier with 136dB max SPL
Frequency response: 30Hz–150Hz (-10dB)
Selectable D-XSUB modes: Normal, Boost, Xtended LF
Cardioid mode support with multiple subs
Rugged plywood cabinet with durable polyurea coating
Dual pole sockets (35 mm & M20) for flexible setup

Specifications

Type

Powered Subwoofer, Bass-reflex

LF Driver

18" Cone, 4" Voice Coil

Frequency Range

30Hz – 150Hz (-10dB)

Maximum SPL

136 dB peak

Amplifier Power

1600W peak / 1200W continuous, Class-D

DSP

96kHz DSP, D-XSUB Normal/Boost/Xtended LF, Cardioid mode

Inputs

2× Combo XLR/TRS

Outputs

2× XLR THRU, 2× XLR Out

Pole Sockets

35mm & M20 threaded

Cabinet

Plywood with Polyurea coating

Dimensions (W × H × D)

550 × 682 × 721 mm (21.7" × 26.9" × 28.4")

Weight

49.7 kg (109.6 lbs)
