YAAG06MK2B
In stock
Yamaha Black 6-Channel Mixer/USB Interface for IOS/Mac/PC
$239.99
Pickup is available in 1 stores
iHomiLA
821 S Los Angeles St, Los Angeles, 90014
United States
Pickup available
1
pcs
In stock
Yamaha
Yamaha AG06MK2 B ?? Black 6-Channel Live-Streaming Mixer/USB Interface for iOS/Mac/PC
Item #: ?? | UPC: ??
The Yamaha AG06MK2 B is a compact, creator-grade console built for fast, repeatable streaming and production. Two phantom-powered combo inputs handle mics or instruments, with a Hi-Z switch on CH2 for direct guitar tracks that sit in the mix. Dual stereo inputs and a 4-pole TRRS path integrate backing music and phone audio without extra boxes. Class-compliant USB-C provides 2-in/2-out recording at up to 24-bit/192 kHz, while Loopback and Mix-Minus modes keep shows clean for hosts and remote guests. One-touch onboard DSP??COMP/EQ, REVERB, and an amp simulator??delivers broadcast polish at low latency, and an assignable Mute plus optional footswitch streamline live control. With flexible monitoring, sturdy construction, and bundled Cubase AI and WaveLab Cast, AG06MK2 B is a reliable desk-ready hub for podcasts, streams, and hybrid performances.
Designed for modern creators, AG06MK2 B combines hands-on routing, smartphone I/O, and studio-clean USB capture in a portable form factor.
Key Features
- Two combo mic/line inputs with +48 V; CH2 Hi-Z for guitars
- Integrated 4-pole TRRS I/O brings calls and phone audio straight to the mix
- USB-C 2-in/2-out up to 24-bit/192 kHz, class-compliant
- One-touch DSP: COMP/EQ, REVERB, Amp Sim; per-channel Mute
- Loopback, Streaming Out modes, and Mix-Minus for clean routing
- Footswitch support (FC5) for REVERB on/off or CH1 Mute
Specifications
Mic/Line Inputs
2 ?? XLR/TRS combo; +48 V on CH1/CH2; CH2 Hi-Z; CH1 headset mini (plug-in power)
Stereo Inputs
L/R phone; L/R RCA; AUX mini
Smartphone I/O
4-pole TRRS mini, input/output
USB Audio
2-in / 2-out, up to 24-bit/192 kHz; USB-C; class-compliant
Streaming Tools
Loopback; Streaming Out (Dry CH1-2G / Input Mix / Loopback); Mix-Minus Mic on/off
Onboard DSP
COMP/EQ, REVERB, Amp Sim; PAD on CH1/CH2; assignable Mute
Monitoring / Outs
PHONES or HEADSET; Stereo Out; Monitor Out
Footswitch
FC5 compatible (REVERB on/off or CH1 Mute)

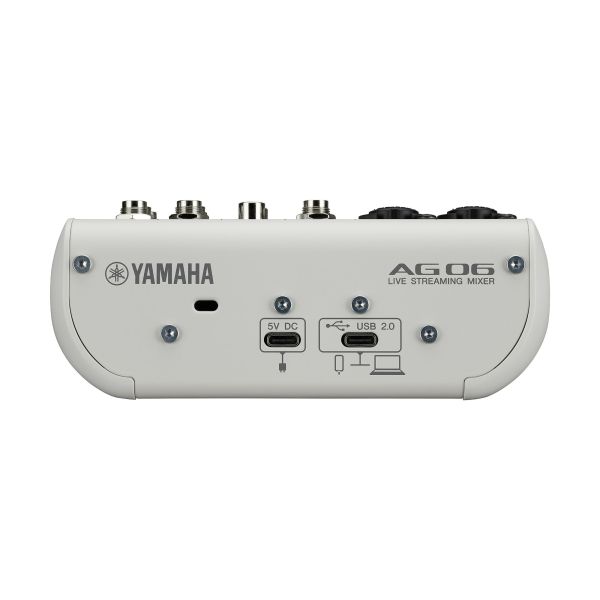

Power
5 V DC over USB-C, 900 mA; max 4.5 W
Dimensions / Weight
6.0" ?? 2.5" ?? 7.9"; 2.0 lb
Software
Cubase AI & WaveLab Cast downloads; AG Controller (macOS/Windows/iOS)
Platform Support
iOS (via Apple Camera Adapter), macOS, Windows
Color
Black (AG06MK2 B)
Product Gallery
Related Keywords:
Yamaha AG06MK2, AG06MK2 B, streaming mixer, USB interface, 24-bit 192 kHz, TRRS smartphone I/O, loopback, mix-minus, one-touch DSP, podcast console, creator audio
| In-Store Pickup | Yes |
|---|---|
| UPC | 889025141444 |
| Stock Last | 1 |
