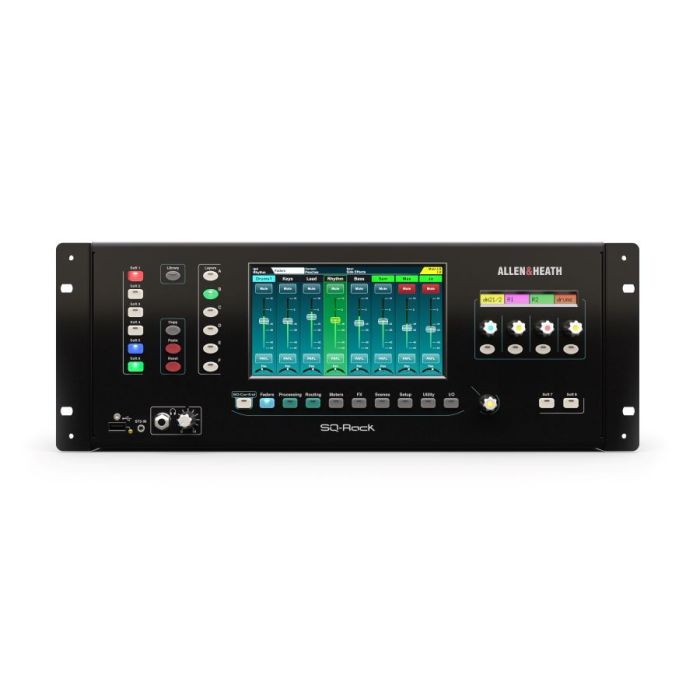

Allen & Heath SQ-Rack Digital Rackmount Mixer

Running the same 96kHz XCVI Core as the rest of the SQ range, the SQ-Rack includes all the same
features and flexibility, including ultra-low <0.7ms latency, intelligent SLink port for use with Allen &
Heath’s ‘Everything I/O’ range of expanders, an I/O Port for Dante/Waves/MADI integration, 48 input
channels and 36 output busses, DEEP channel processing options and 8 RackExtra FX engines.
Unique to SQ-Rack, there is a dedicated faders screen in lieu of physical faders along with an SQControl
screen which provides simplified control for inexperienced users or instant access to key
parameters such as mutes, levels and scene recalls.
• 96kHz XCVI Core
• 48x Input processing channels
• Stereo Main LR Output
• 12x Mixes (Group/Aux, Stereo/Mono)
• 3x Stereo Matrix
• 17x XLR Mic/Line Input Sockets
• 4x TRS Line Input Sockets
• 1x 3.5mm Stereo Input Socket
• 12x XLR Output Sockets
• 2x TRS Output Sockets
• 1x AES3 Stereo Digital Output Socket
• 128x128 Intelligent SLink Port for Everything I/O
expansion and system connections
• 64x64 I/O Port for Option Cards
• Stereo Headphone Output
• 8x FX Engines with dedicated Returns
• 7” Capacitive Touchscreen and associated
Rotary control
• 8x SoftKeys
• 4x Soft Rotaries and associated Keys
• SQ-Drive For stereo or multichannel audio
record/playback (16x16@96kHz, 32x32@48kHz)
and data transfer
• USB-B Audio interface for multichannel
record/playback (32x32)
• Configurable single/dual Footswitch Connection
• 19” Rack Mountable (multi-position rack ears
included)
• IEC Mains Connection with Worldwide PSU
• RJ45 Network Socket
• Remote control via free apps –
Windows/MacOS/iOS/Android
